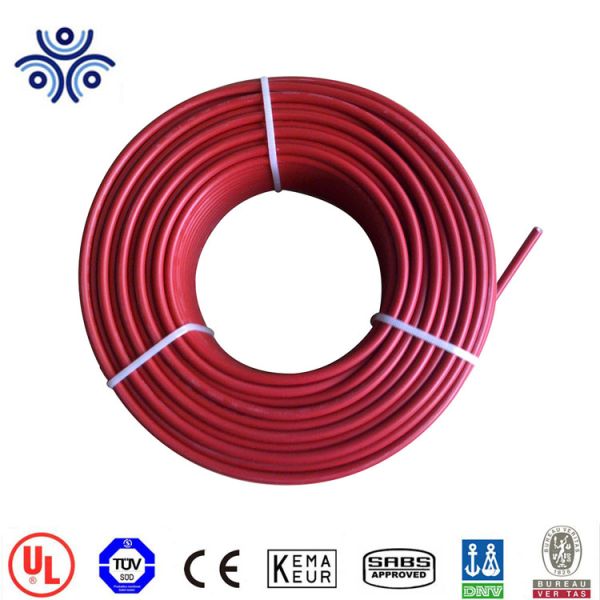

2000V Aluminum Conductor Solar PV Cable UV Resistant For Solar Power Applications

Brand Name : Minfeng

Model Number : Solar Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Free Sample : Avaliable

Rate Voltage : 1KV AC 1500V DC

Insulation : XLPO

Male End Type : CEE, CEE/16 3 Prong Schuko Plug

Trademark : Minfeng

Condutor : tinned copper

Contact Now

2000V 240mm² 300mm² 400mm² Photovoltaic Solar Aluminum Electric Power Wire PV Cable
Product Overview

Single core flexible cables specifically designed for photovoltaic and solar systems with cross-linked polymer insulation and halogen-free sheath.

2000V Aluminum Conductor Solar PV Cable UV Resistant For Solar Power Applications
Key Specifications
Conductor Material
Copper
Insulation Material
XLPE
Application
Construction
Type
Low Voltage
Voltage Rating
AC1000V DC1500V
Cross Section
95mm² 120mm² 150mm² 185mm²
Conductor Type
Tinned flexible copper wire or aluminum conductor
Standard
EN50618
TUV Certified High Heat Resistant Water Resistant Free Samples Available
Applications
  • Cabling between solar modules and as extension cable between module strings and DC/AC inverter
  • Gable and flat roof photovoltaic systems
  • Photovoltaic plants and solar parks
  • Flexible or building-integrated PV systems including connecting photovoltaic power supply systems
  • Can be used indoor & outdoor for flexible and fixed installations
  • Suitable for extreme weather conditions from -40°C to 120°C
  • Ozone & UV resistant with full protection against ultraviolet rays
Product Features
  • Weather/UV-resistant according to HD 605/A1
  • Ozone-resistant according to EN 50396
  • Halogen-free and flame-retardant
  • Good notch and abrasion resistance
  • XLS-R = X-Linked Standard - Reduced Proven electron beam cross-linked quality
  • Cold Flexibility
  • Long Life about > 25 years
  • Suitable to common connector type
Construction Details
Component Specification
Standard TUV 2 PFG 1169 / 08.2007 & VDE E PV 01
Conductor Tinned fine copper strands, according to IEC 60228, class 5
Insulation Cross Linked polyolefin-copolymer Double Insulated, Temperature resistant and halogen free, Flame Retardant, Low Smoke
Color of Insulation Black, red, blue
Outer Sheath Flame retardant and halogen free Co-Polymer, electron beam cross linked, Weather proof & UV Resistant. Color - Black
Electrical Properties
Property Specification
Nominal voltage U0/U AC 600/1000 V - 720/1200 V & DC 900/1800 V
Max. permitted DC voltage 1.8 kV (Conductor/Conductor, non earthed system)
Working voltage According to TÜV 2 PfG 1169 DC 1000 V
Test voltage AC 6.5 kV for 5 min & DC 15 KV
Insulation Resistance 1000 mΩ/km minimum
UL4703 Standard Specifications
2000V Aluminum Conductor Solar PV Cable UV Resistant For Solar Power Applications
UL Applications
  • For use in solar power applications
  • Rated 90℃ for exposed or concealed wiring in wet or dry locations
  • Rated for direct burial conduit
Construction Details
  • Stranded copper conductors with single layer
  • Bare or tinned conductors
  • XLPE insulation
  • -40°C to +90°C temperature range
  • Sunlight resistant
  • RoHS compliant
  • Direct burial rated
Specifications
  • Copper Photovoltaic Wire meets UL Subject 4703 for TYPE PV
  • UL 44 for TYPE RHW-2
  • UL 854 for TYPE USE-2
Options
  • 600V / 1000V configurations available upon request
  • Cable tray use compatible
